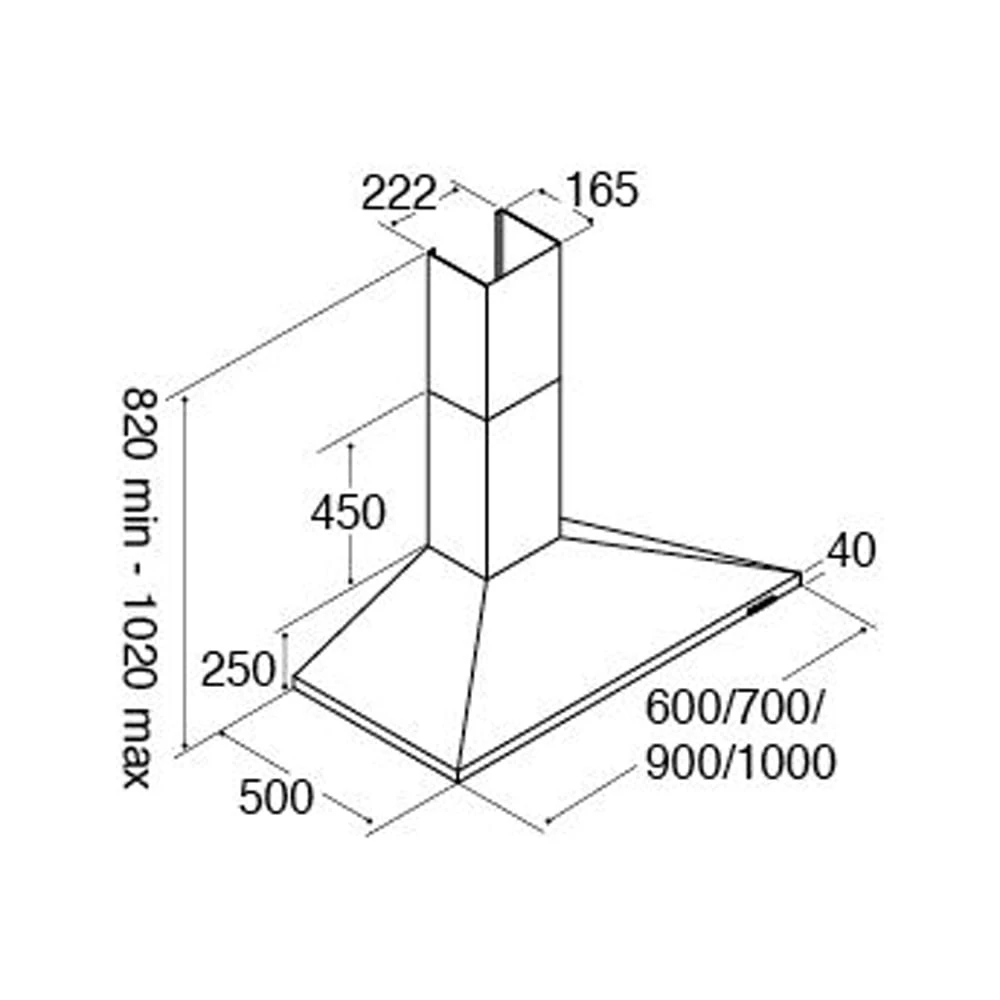

| DIMENSIONS | |
|---|---|
| Height | 820-1020mm |
| Depth (Top to Bottom) | 500mm |
Product Descriptions

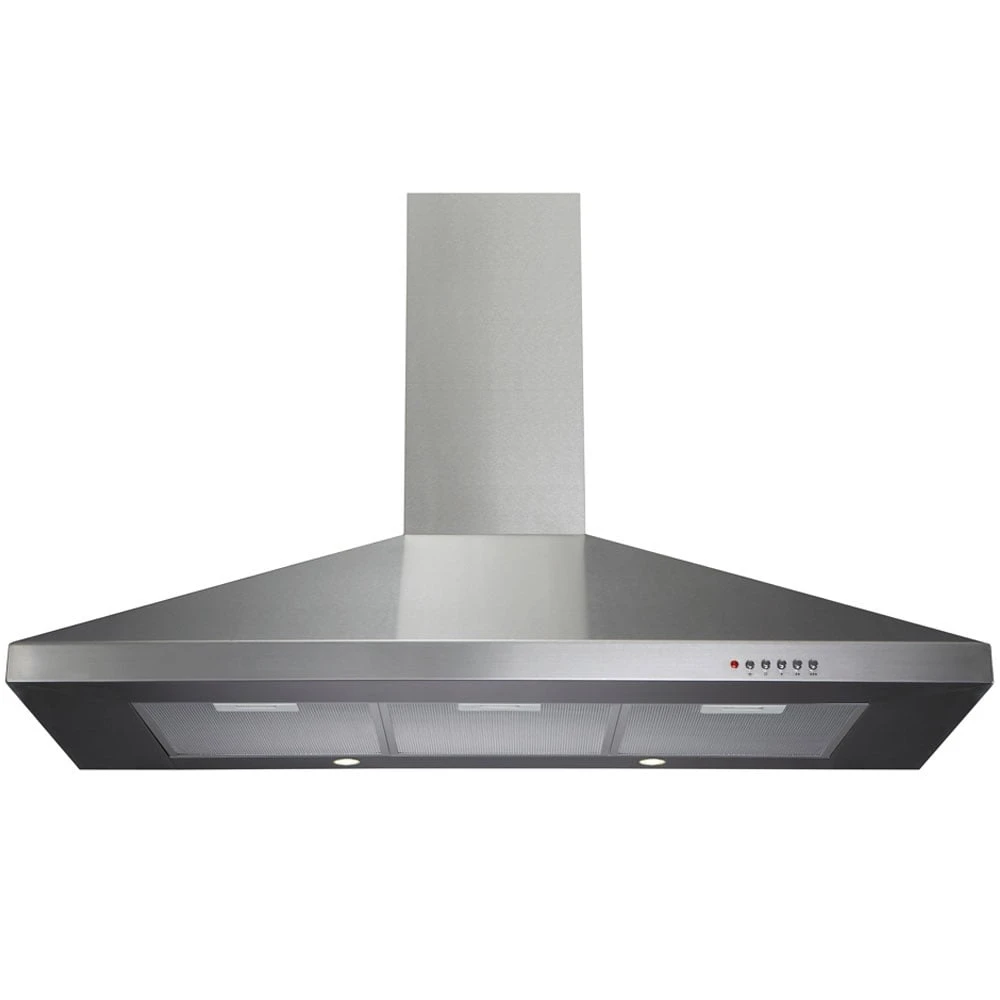

- The ECH101SS 100cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen. The ECH101SS has 3 speeds with push button control, a twin fan motor and built in LED lights for good illumination.
Technical Specification
- Power supply: 3A
- Outlet diameter: 150mm
- Motor Input: 140.0000W
- Rated electrical power: 146W
- Required height over gas hobs: 700mm (min)
- Required height over electric hobs: 600mm (min)
Optional Accessories
- Ducting kit code: AED61/63/64
- Charcoal filter for re-circulation: CHA24 (pack of 2)
Filters
- Ducting kit: AED61/63/64
- Charcoal filter code: CHA24
- Number of charcoal filters (optional): 2
Extraction Rates And Noise
- Extraction rate at first speed: 265 m3/hr
- Noise level at first speed: 60 dBA
- Extraction rate at second speed: 323 m3/hr
- Noise level at second speed: 62 dBA
- Extraction rate: 427 m3/hr
- Noise level: 64 dBA
- Extraction rate at third speed: 427 m3/hr
- Noise level at third speed: 64 dBA
Lighting
- Type of light: LED
- Number of lights: 2
Energy
- Energy rating: D
Misc Information
- WEEE Category: 01
<!—
