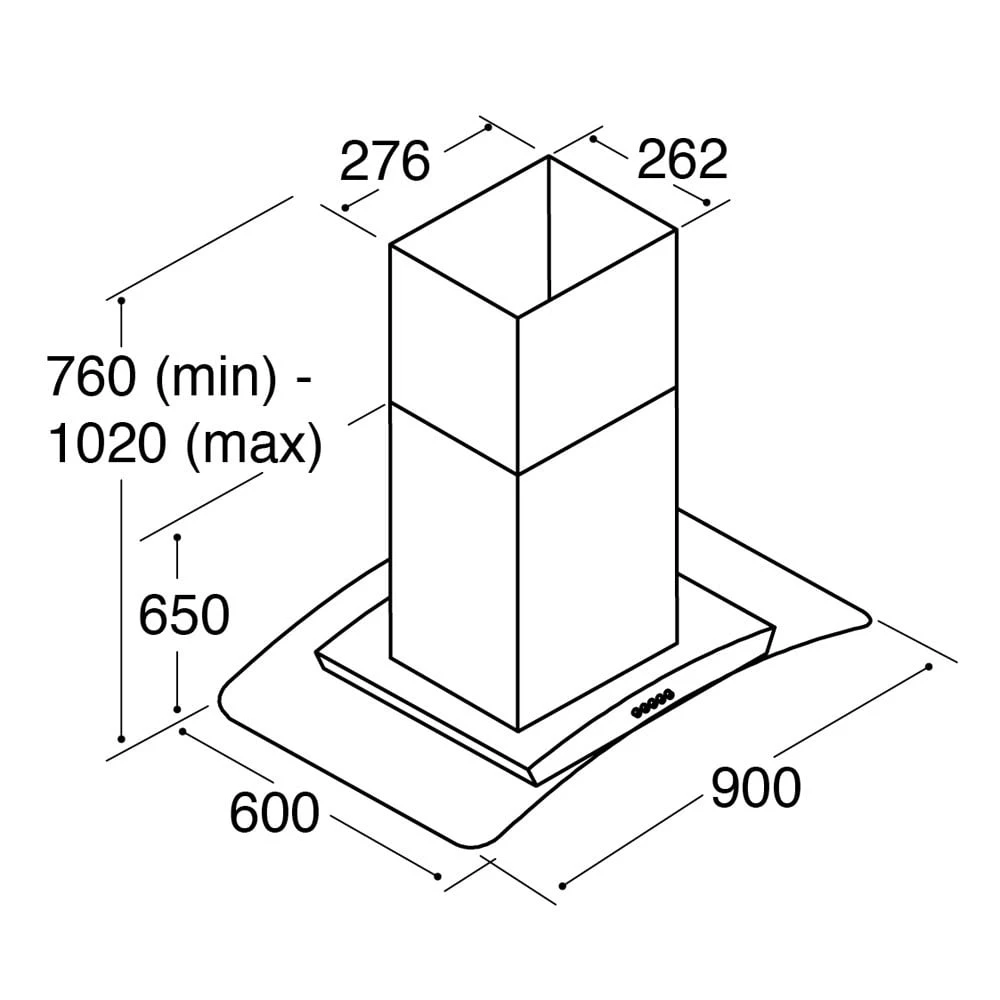

| DIMENSIONS | |
|---|---|
| Height | 760-1020mm |
| Width (Front to Back) | 900mm |
| Depth (Top to Bottom) | 600mm |
| PRODUCT FEATURES | |
|---|---|
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Product Description

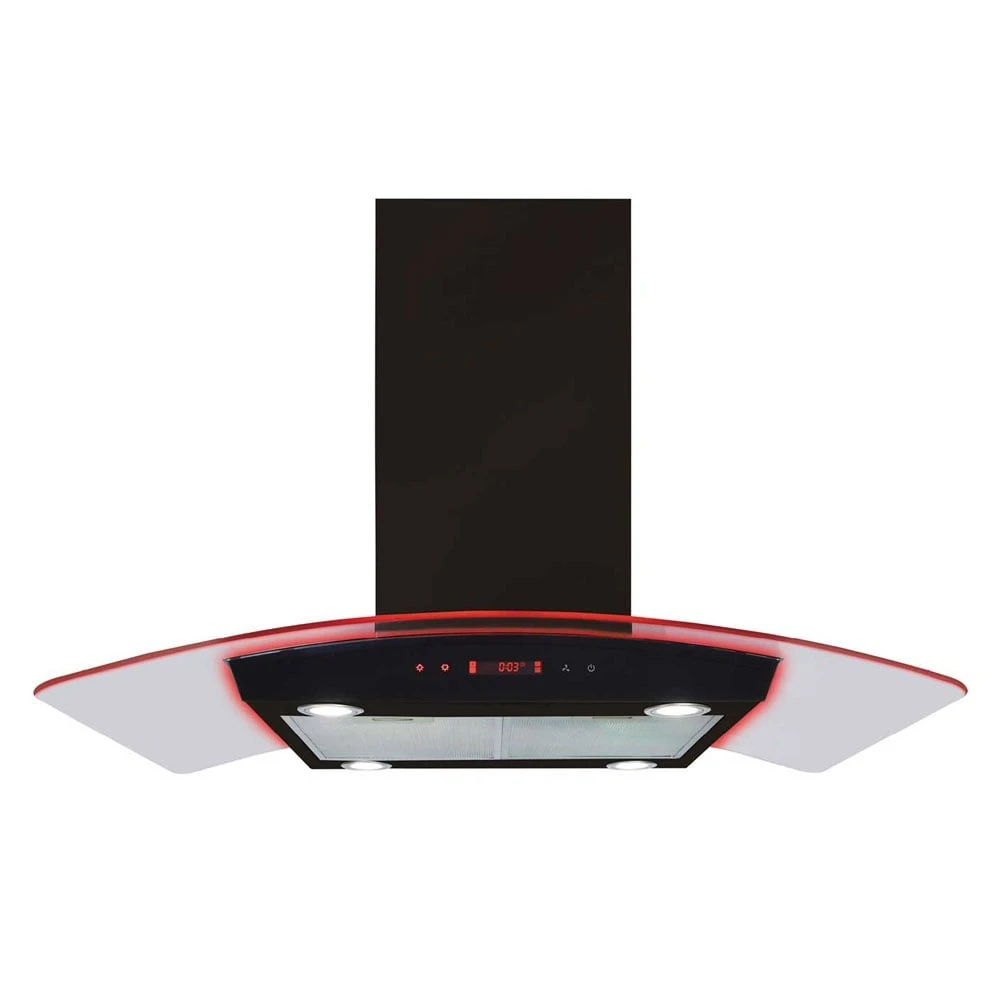

- The EKPK90BL is a stylish curved glass island extractor with LED edge lighting in three colours, blue, red and green. It has 3 speeds, touch control and built in LED lights to provide good illumination of the cooking area.
Features
- 3 speeds
- Touch control
- Ducted/re-circulating installation
- Guarantee – 5 years parts and 2 years labour
Technical Specification
- Power supply: 3A
- Motor Input: 100W
- Mains lead length: 1m
- Rated electrical power: 111W
- Required height over gas hobs: 700mm (min)
- Required height over electric hobs: 600mm (min)
Extraction Rates And Noise
- Extraction rate at first speed: 224m3/hr
- Noise level at first speed: 50dBA
- Extraction rate at second speed: 322m3/hr
- Noise level at second speed: 56dBA
- Extraction rate at third speed: 387m3/hr
- Noise level at third speed: 61dBA
Energy
- Energy rating: D
Lighting
- 4 x 2W LED + 3W LED edge lighting
- Type of light: LED
Filters
- Aluminium grease filter
- Charcoal filter code: CHA12
Fitting Notes
- Please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
