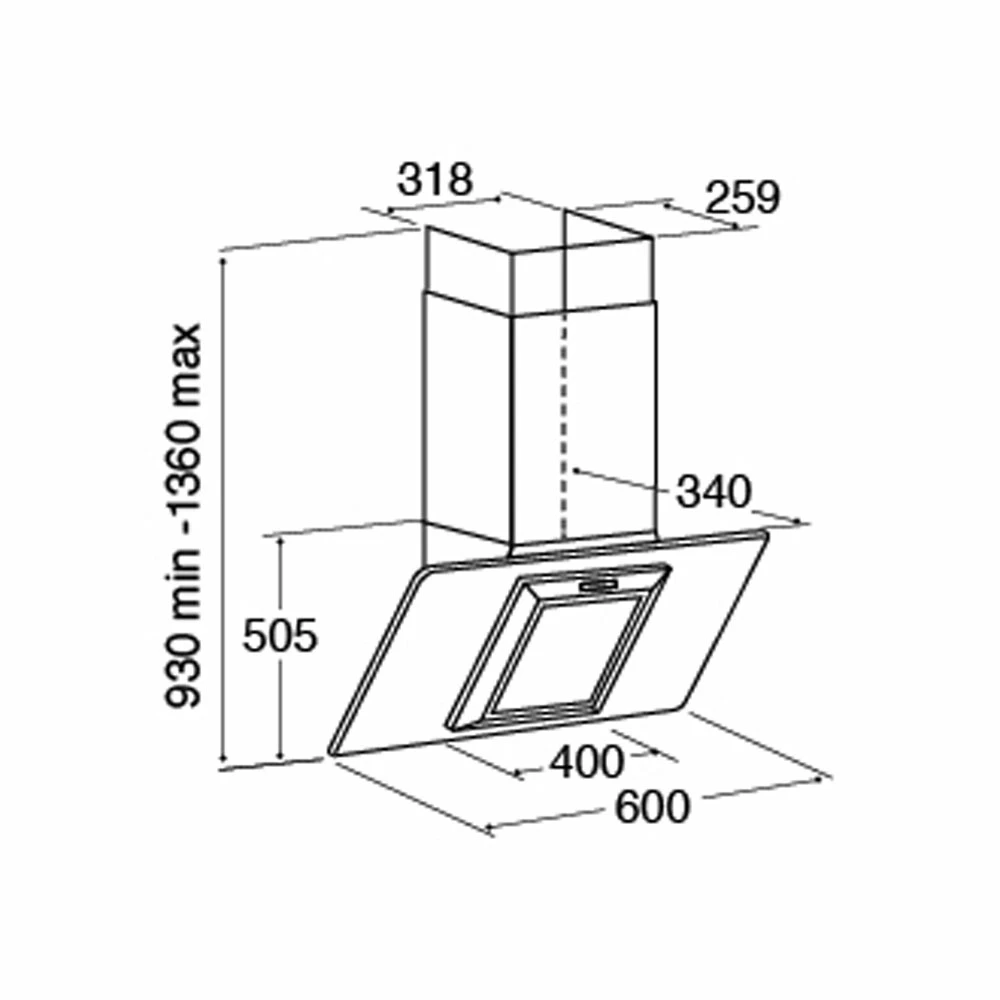

| DIMENSIONS | |
|---|---|
| Height | 930-1360mm |
Product Descriptions

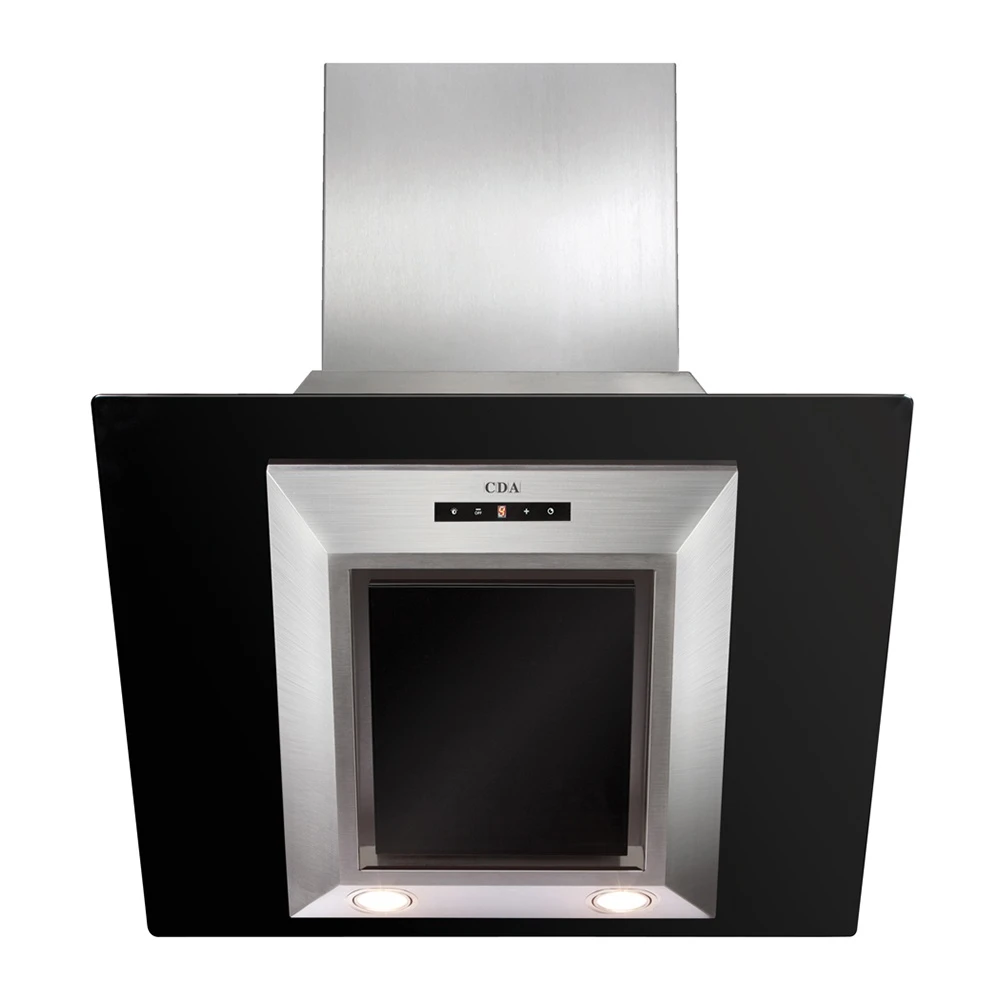

- The CDA EVG6BL is a 60cm black glass extractor with great aesthetics and functionality to match. It is touch controlled, with 3 speeds plus an intensive setting. It comes with aluminium grease filters, a filter saturation warning light, clean air function and a 15 minute timer to provide efficient and effective extraction.
Features
- Touch control
- Lighting: LED
- Twin fan motor
- Clean air function
- Telescopic chimney
- 3 speeds + intensive
- Peripheral aspiration
- Timer: 15 minute timer
- Filter saturation warning light
- Ducted/re-circulating installation
- Type of grease filter: Aluminium grease filter
- Guarantee: 5 years parts and 2 years labour warranty.
Technical Specification
- Power supply: 3A
- Motor Input: 250.0000W
- Outlet diameter: 150mm
- Rated electrical power: 252W
- Required height over gas hobs: 760mm (min)
- Required height over CDA gas hobs: 450mm (min)
- Required height over electric hobs: 650mm (min)
- Required height over CDA electric hobs: 450mm (min)
Optional Accessories
- Ducting kit code: AED 61/63/64
- Charcoal filter for re-circulation: CHA21 (pack of 2)
Filters
- Charcoal filters: CHA21 (pack of 2)
- Number of grease filters: 1
- Number of charcoal filters (optional): 2
- Ducting kit: AED61/63/64
- Charcoal filter code: CHA21
Extraction Rates And Noise
- Extraction rate at first speed: 191m3/hr
- Noise level at first speed: 41dBA
- Extraction rate at second speed: 302m3/hr
- Noise level at second speed: 48dBA
- Extraction rate: 422m3/hr
- Noise level: 58dBA
- Extraction rate at third speed: 422m3/hr
- Noise level at third speed: 58dBA
Extraction rate at fourth speed: 479m3/hr
Noise level at fourth speed: 63dBA
Lighting
- Type of light: LED
- Number of lights: 2
Energy
- Energy rating: C
<!—
