| DIMENSIONS | |
|---|---|
| Length (Left to Right) | 1075mm |
| Width (Front to Back) | 505mm |
| Depth (Top to Bottom) | 215mm |
| Minimum Cabinet Size | 600mm |
| Cutout Dimensions | 1055 x 485 mm |
| Main Bowl Size (Length x Width x Depth) | 340 x 400 x 210mm |
| Second Bowl Size (Length x Width x Depth) | 150 x 400 x 160mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Stainless Steel |
| Finish | Polished |
| Material | Steel |
| Bowl Configuration | 1.5 Bowl Sink |
| Overflow | Fitted with overflow |
| Tap Holes | Undrilled |
| Suitable Plumbing Kit | Suitable for use with 2 bowl plumbing kit |
| Installation | Inset – Top Mounted |
| Guarantee | 5 Year manufacturers guarantee against manufacturing defects |
Additional Information

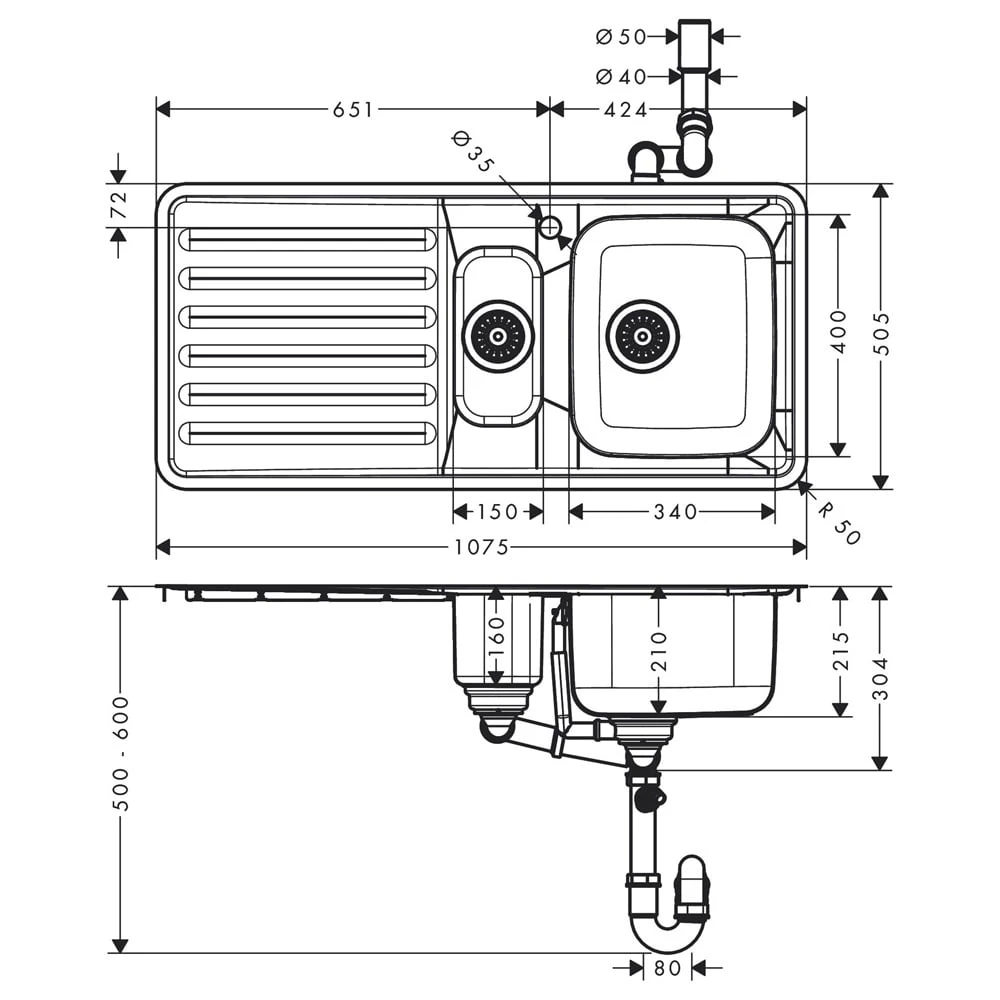

- Tap hole for drilling is predefined (see scale drawing)
- Position overflow: on the side of the bowl under drainboard
- Tap hole reinforcing for a tight and stable seating of the kitchen mixer
- Corner radius: 70 mm
Knocking through a tap hole can be daunting task, so why dont you read our helpful guide?
