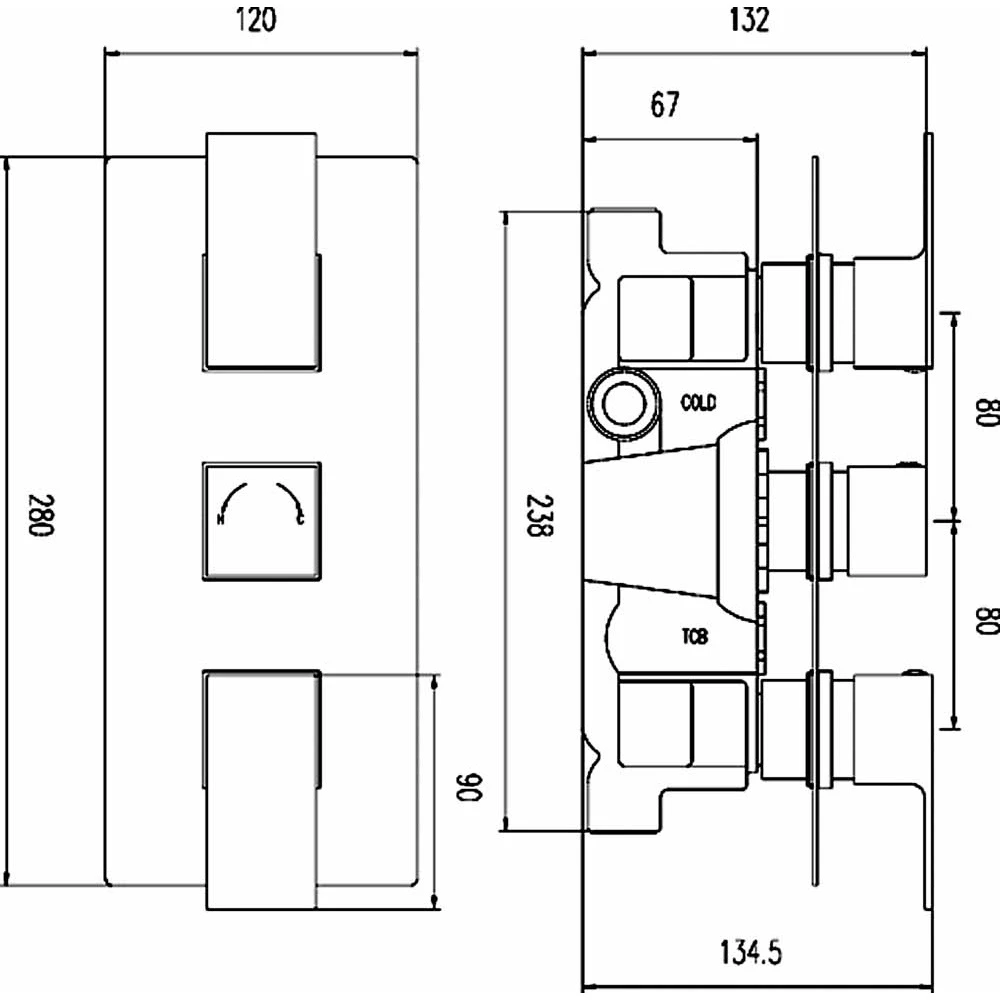

| DIMENSIONS | |
|---|---|
| Height | 280mm |
| Width (Front to Back) | 120mm |
| Depth (Top to Bottom) | 135mm |
| PRODUCT FEATURES | |
|---|---|
| Style | Contemporary |
| Colour | Chrome |
| Finish | Polished |
| Material | Brass |
| Valve Type | 3 Way Thermostatic |
| Minimum Bar Pressure | 0.1 Bar – Low Pressure |
| TMV 2 Scheme | Yes |
| Guarantee | 20 Year manufacturers guarantee against manufacturing defects |
Additional Information
- Accurate flow control
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Manufactured from high quality brass & ABS
- Excellent flow rates – even at low pressure
- Simply remove the cartridge turn 180° and replace
- Thermostatic Control To +/- 2 Degrees Even If The Water Pressure Fluctuates
- Full Thermal Protection To Prevent Scalding In The Event Of Hot Or Cold Water Shut Off
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
Specifications:
- Valve/Cartridge Type: 1/4 Turn Ceramic Disc
- Mount Type: Wall, Recessed
- Valve Handle Type/Shape: Square Handle, Lever Handle
- No. Of Handles (Showers): 3
- Valve Mount Type: Concealed Shower
- Shower Valve Style Shape: Rectangular
Flow Rate & Additional Sizes:
- Flow Rate 0.1Bar l/m (Showers): 5.5
- Flow Rate 0.5Bar l/m (Showers): 14
- Flow Rate 1Bar l/m (Showers): 20
- Flow Rate 2Bar l/m (Showers): 29
- Flow Rate 3Bar l/m (Showers): 44
- Pipe Size: 15 mm & 22 mm
Approval:
- WRAS Approved (Shower)
- WRAS Approval Number (Shower): 1703023
- TMV2 Approved (Shower)
- TMV3 Approved (Shower)
- TMV2 Approval Number (Shower): BC1875/0817
- TMV3 Approval Number (Shower): BC1119/1212
